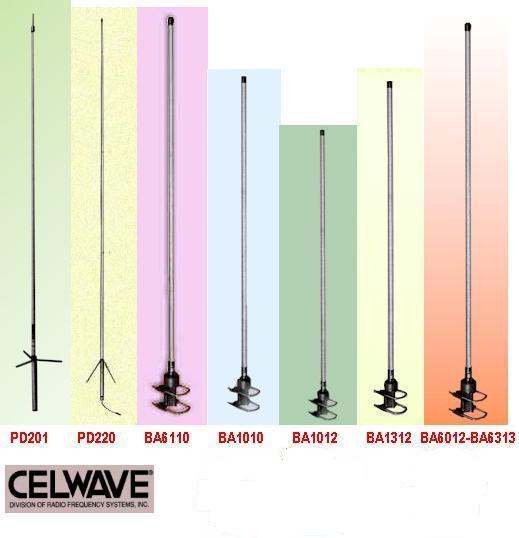

Antena Celwave PD220 | Antena Repeater
Antena Celwave sangat cocok untuk repeater, berikut ini spesifikasi antena Celwave :
| Item Number |
Frequency Range MHz |
| PD220-DT | 136 – 174 |
| PD220-1 | 136 – 141 |
| PD220-2 | 142 – 150 |
| PD220-3A | 150 – 158 |
| PD220-3B | 152 – 160 |
| PD220-4 | 155 – 163 |
| PD220-5 | 157 – 165 |
| PD220-6 | 160 – 169 |
| PD220-7 | 165 – 174 |
CELWAVE PD220 SPECIFICATIONS
|
PD220-1 |
PD220-2 |
PD220-3A |
PD220-3B |
PD220-4 |
PD220-5 |
|
|
Frequency Range- MHz |
136-141 |
142-150 |
150.5-158.5 |
151.5-159.5 |
155-163 | 157-165 |
|
Gain – dBd (dBi) |
5.25 (7.4) |
|||||
|
Bandwidth – MHz for 1.5:1 VSWR |
5 |
8 |
||||
|
Vertical Beamwidth – Degrees |
18 | |||||
|
Polarization |
Vertical |
|||||
|
Maximum Power Input – Watts |
500 |
|||||
|
Electrical Tilt – Degrees |
0 |
|||||
|
Lightning Protection |
Direct Ground |
|||||
|
Termination – Direct Fixed |
UHF-female |
|||||
|
Flexible Extension |
18″ RG8 N-Male |
|||||
|
ELECTRICAL(cont.) |
PD220-6 |
PD220-7 |
PD220-8 |
PD220-8A |
PD220-8B |
PD220-9 |
PD220-DT |
|
Frequency Range – MHz |
160-169 | 165-174 |
216-225 |
216-221 |
220-225 |
279-281 |
136-174 |
|
Gain – dBd (dBi) |
5.25 (7.4) |
6 (8.1) |
5.0 (7.1) | ||||
|
Bandwidth – MHz for 1.5:1 VSWR |
9 |
5 |
2 |
1.5 | |||
|
Vertical Beamwidth – Degrees |
18 |
16 |
18 | ||||
|
Polarization |
Vertical |
||||||
|
Maximum Power Input – Watts |
500 |
||||||
|
Electrical Tilt – Degrees |
0 |
3,6 | |||||
|
Lightning Protection |
Direct Ground |
||||||
|
Termination – Direct Fixed |
UHF-female |
||||||
|
Flexible Extension |
18” RG8 N-Male |
||||||
